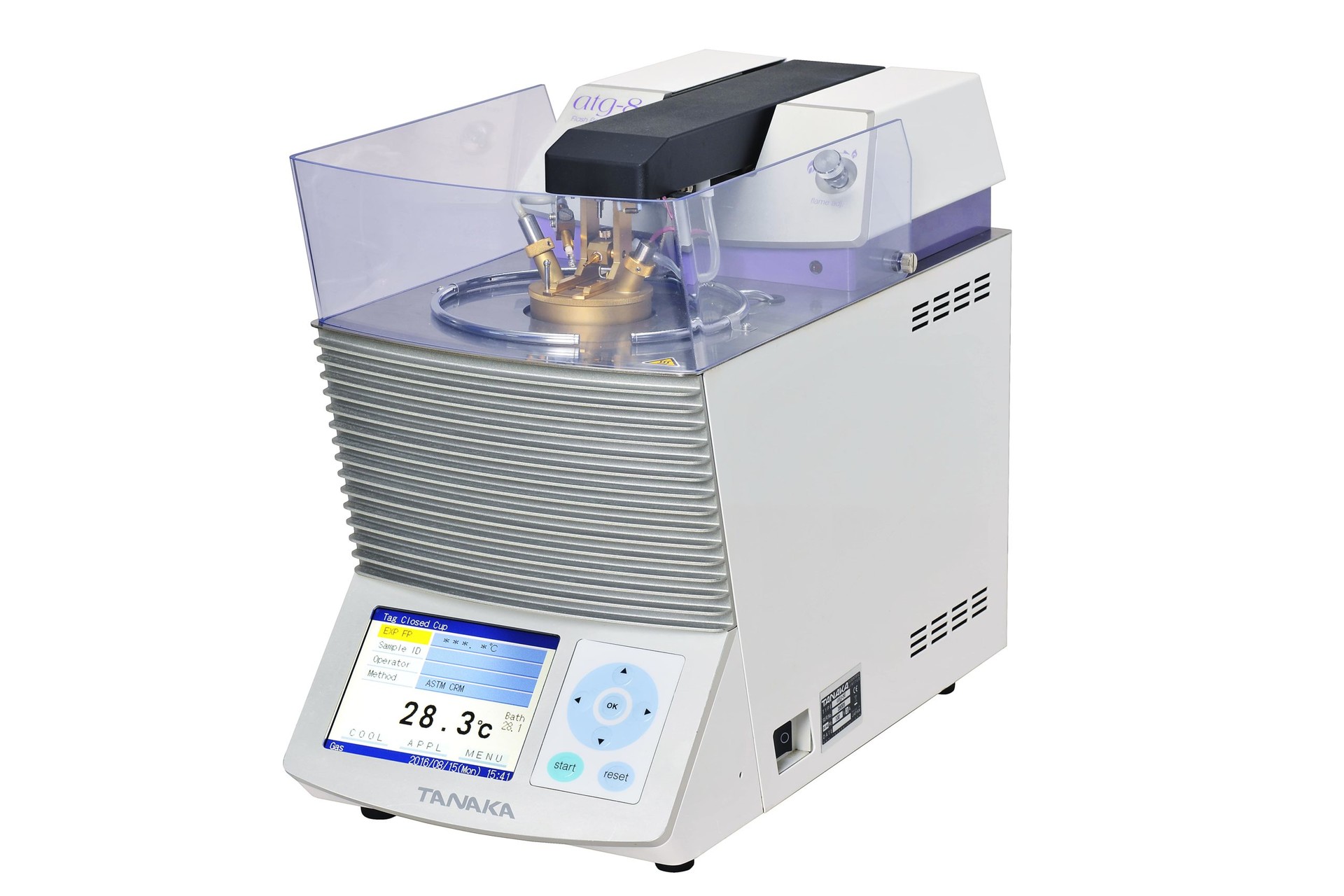

Flash Point Analyzer

abl-8

Single Action Setting

The cup cover is permanently mounted on a swing-arm assembly, which allows an easy handling of the test cup cover. Due to this design, the hot cup cover right after completion of a test can also be lifted with ease. The swing arm assembly can be raised to a vertical position, ensuring easier cleaning of the test cover.

2 Types of Baths

Heating / Cooling is done by energy efficient Peltier modules attached to a metal block bath. Air-cooled model abl-8afc and liquid-cooled model abl-8lfc are available for different temperature ranges (Model abl-8lfc requires an optional chiller).

Easy Operation

Select a test mode and enter the expected flash point; while the instrument executes the test, you are free to do other lab work. The instrument follows the exact procedures prescribed in the test method, and the completion of the test cycle is signaled by beeps. The test result is brightly shown on the color LCD module.

Data Handling

The unit is designed to store up to 200 test results and export to an optional printer or to a LIMS through an RS- 232 port or USB memory stick.
